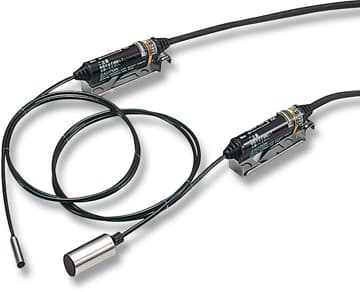

E2EC-C3D1-M1J-1
Product ID:65552
Updated: 2026/7/15
Key Features
- 1Compact Design: 8 mm diameter sensing head for reliable sensing in tight spaces.
- 2High Sensitivity: 3 mm sensing range with a shielded cylinder type sensing head.
- 3Versatile Connectivity: DC 2-wire models with an M12 pigtail connector for easy integration.
- 4Robust Construction: Full metal housing for high resistance in demanding environments.
- 5Advanced Features: Built-in amplifier in the cable, output short-cut protection, and surge suppressor for enhanced reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Shielded | Shielded | Size | M8 |
| Sensing Distance | 3 mm | Connection | M12 4-pin connector |
| Output | 2 Wire DC | Operation | NO |
| Supply voltage | 12 to 24 VDC | Case material | Nickel-plated brass |
| Threaded length (mm) | Smooth Barrel | Overall length (mm) | 18 |
| Mounting | Bracket or 8 mm hole |
Specifications may be subject to change without notice
