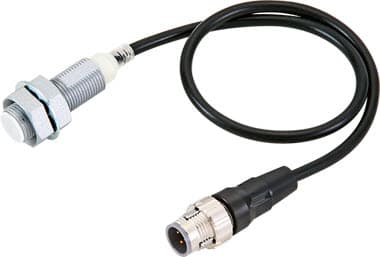

E2EQ-X8C218-M1
Product ID:59348
Updated: 2026/7/14
Key Features
- 1Enhanced Sensing Distance: Offers a sensing distance of 8 mm for precise detection.
- 2Robust Brass Housing: Constructed with brass, nickel-plated for durability and resistance to corrosion.
- 3IP67/IP69K Protection: Ensures reliable operation in harsh environments with IP67/IP69K degree of protection.
- 4NPN Output Type: Provides NPN output for easy integration into various control systems.
- 5M12 Connector: Features a convenient M12 connector for easy connection and installation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Coating | Fluororesin Coating | IP67 | IP67 |
| IP69K | No | Long/Short Body | Short |
| Size | M18 | Sensing Range | 2x |
| Sensing Distance | 8 mm | Shielded | Shielded |
| Connection | M12 4-pin connector | Output | NPN |
| Operation | NC | Supply type | 3-wire DC |
| Supply voltage | 10 to 30 VDC | Case material | Brass |
| Sensing Surface Material | Fluororesin | Threaded length (mm) | 34 |
| Overall length (mm) | 53 | IP67G | No |
| IO-Link | Non IO-Link |
Specifications may be subject to change without notice
