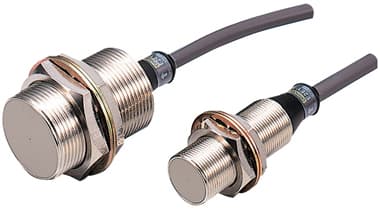

E2EY-X8C1
Product ID:65395
Updated: 2026/7/16
Key Features
- 1Detects non-ferrous metals like aluminum and brass with high accuracy.
- 2Features a sensing distance of 8 mm ±10% for precise detection.
- 3Operates in a wide voltage range of 12 to 24 VDC with 10% max ripple.
- 4Includes protective circuits for output short-circuit protection and reverse polarity protection.
- 5Meets IP67 rating for oil-proof and dust-proof performance in harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Case material | Nickel-plated brass | Operation | NO/NC selectable |
| Overall length (mm) | 60 | Shielded | Shielded |
| Supply voltage | 12 to 24 VDC | Size | M30 |
| Sensing Distance | 8 mm | Connection | PVC cable |
| Output | NPN | Threaded length (mm) | 42 |
| Mounting | Bracket with 30 mm mounting hole or M30x1.5 threaded hole. | Cable Length | 2 m |
Specifications may be subject to change without notice
