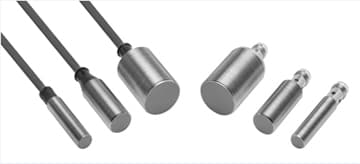

E2V-X2B1 2M
Product ID:65404
Updated: 2026/7/15
Key Features
- 1High Accuracy: Sensing distance of 2 mm with ±10% accuracy for precise detection.
- 2Long-Range Sensing: Designed for all-metal and long-distance sensing applications.
- 3Robust Construction: Shielded M12 cylinder type with brass nickel plating for durability.
- 4Wide Operating Range: Operates from 10 to 30 VDC with a maximum current consumption of 15 mA.
- 5Enhanced Protection: Equipped with output short-circuit protection, reverse polarity protection, and surge suppressor for reliable operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Case material | Nickel-plated brass | Operation | NO/NC selectable |
| Shielded | Shielded | Supply voltage | 12 to 24 VDC |
| Size | M12 | Sensing Distance | 2 mm |
| Connection | PVC cable | Output | PNP |
| Threaded length (mm) | 47 | Overall length (mm) | 60 |
| Mounting | Bracket with 12 mm mounting hole or M12x1 threaded hole. | Cable Length | 2 m |
Specifications may be subject to change without notice
