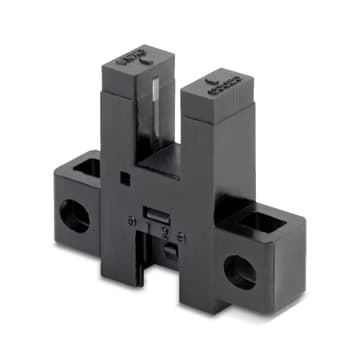

EE-SX970-C1
Product ID:66234
Updated: 2026/7/14
Key Features
- 1High Accuracy: The EE-SX970-C1 offers precise sensing with a 5 mm sensing distance and 0.17 ms response time.
- 2Reliable Operation: Equipped with built-in power supply reverse polarity protection and overcurrent protection for safe operation.
- 3Easy Installation: Features a standard-shape design with a fixed setting method and system connector for straightforward integration.
- 4Versatile Outputs: Provides both Dark-ON and Light-ON outputs, allowing for flexible application configurations.
- 5Durable Construction: Built with PBT housing and polycarbonate emitter/receiver for robust performance in various environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Connection | 4 pole connector | Housing Material | Plastic |
| Light Source | Infrared LED | Max Sensing Distance | 5 mm |
| Operation | L-ON/D-ON selectable | Sensing Method | Through-beam |
| Supply Voltage | 5 to 24 VDC | Type | Photomicro |
| Body Type | Standard | Output | NPN |
Specifications may be subject to change without notice
