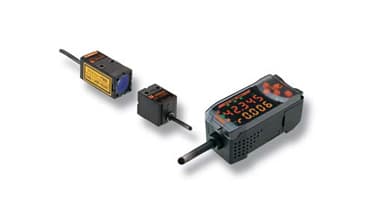

ZX-LD300L
Product ID:66686
Updated: 2026/7/14
Key Features
- 1High precision measurement with a resolution of 300 μm.
- 2Suitable for detecting objects at a sensing distance of 300 ± 200 mm.
- 3Compatible with various industrial applications, including surface movement and eccentricity detection.
- 4Features a visible-light semiconductor laser with a wavelength of 650 nm and an output of 1 mW max.
- 5Meets FDA Class II and EN Class 2 safety standards for laser products.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Analog Output | (-5 to +5V),(1 to 5V),(4 to 20 mA) | Cable length | 0.5 m |
| Light source | Visible semiconductor laser 650nm | Supply voltage | 12 to 24 VDC |
| Sensing method | Diffuse Reflective | Safety | Class II |
| Resolution | 300 渭m | Height range | 300卤200 mm |
| Beam Shape | Line |
Specifications may be subject to change without notice
