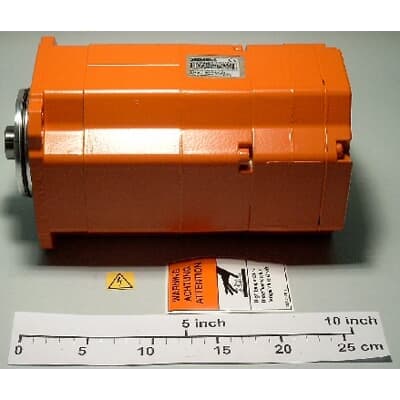

3HAC8606-1
Product ID:94366
Updated: 2026/4/4
Key Features
- 1Deliver high performance with 1,445 rpm and 58,000 rpm output speed. 2、Ensure robust operation via a 2.30 service factor and 1,239 Nm output torque. 3、Achieve efficient power use at 7.5 kW and 400/690 V voltage. 4、Support drag chain applications with a 10 m length capability. 5、Meet IP55 protection and F insulation class for reliable operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Technical Information | Axis 5
AC Motor without pinion | Customs Tariff Number | 85015220 |
| Part Type | New | WEEE Category | Product Not in WEEE Scope |
| Product Net Weight | 18.5 kg | Gross Weight | 18.5 kg |
| Product Net Depth / Length | 290 mm | Product Net Height | 160 mm |
| Product Net Width | 160 mm | Frame Size | Spare_Parts |
| Product Name | Motor | ABB Type Designation | . 3086W / 11,7Nm |
| Manufacturer ID | 3HAC8606-1 |
Specifications may be subject to change without notice
