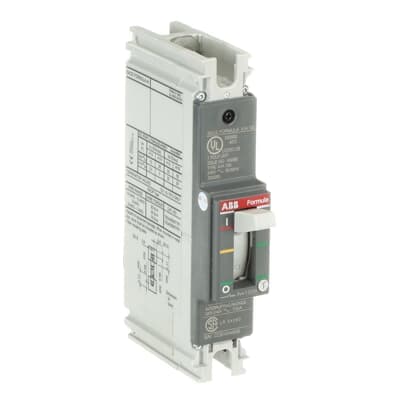

A1A 100 TMF 100-1000 1p F F UL
Product ID:76134
Updated: 2026/7/22
Key Features
- 1Deliver reliable power distribution with a 100-1000 amp rating.
- 2Ensure safe operation using a thermal magnetic trip device.
- 3Meet strict safety standards with UL certification.
- 4Simplify installation via front terminals and thermomagnetic release.
- 5Gain peace of mind with an included 2-year Radwell warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SDL000183R0001 9AKK108467A6707 | Product Net Width | 25.4 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.25 kg | Product Main Type | SACE FORMULA |
| Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
| Version | F | Number of Poles | 1 |
| Rated Current (In) | Main Circuit 100 A | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V | Rated Operational Voltage | 240 V AC 125 V DC |
| Rated Uninterrupted Current (Iu) | 100 A | Release | TMF |
| Release Type | TM | Short-Circuit Performance Level | A |
| Standards | UL | Sub-type | A1 |
| Terminal Connection Type | Front | Interrupting Rating acc. to UL489 | (240 V) 10 kA |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers | UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370409 |
| Manufacturer ID | 1SDA069708R1 |
Specifications may be subject to change without notice
