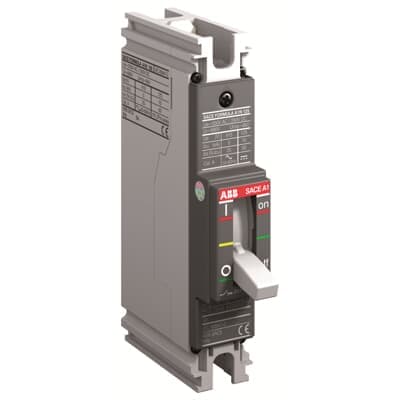

A1C 125 TMF 15-400 1p F F
Product ID:92925
Updated: 2026/4/3
Key Features
- 1Withstand 1500 electrical cycles for long-lasting performance. 2、Apply to DC systems up to 250VDC and AC up to 550VAC. 3、Ensure reliable protection with a 15 ms thermomagnetic release. 4、Connect easily and securely using front terminals. 5、Meet international IEC standards for safety and compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SDL000183R0001 9AKK108467A6707 | Product Net Width | 25.4 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.25 kg | Product Main Type | SACE FORMULA |
| Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
| Version | F | Electrical Durability | 1500 cycle |
| Mechanical Durability | Nr. Operations 8500 cycle | Number of Poles | 1P |
| Opening Time | CB with SOR 15 ms CB with UVR 15 ms | Power Loss | at Rated Operating Conditions per Pole 2.5 W |
| Rated Current (In) | Main Circuit 15 A | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V | Rated Operational Voltage | 415 V AC 125 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 V AC) 9 kA (380 V AC) 1.25 kA (415 V AC) 1.25 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (240 V AC) 18 kA (380 V AC) 2.5 kA (415 V AC) 2.5 kA (125 V DC) 5 kA |
| Rated Uninterrupted Current (Iu) | 125 A | Release | TMF |
| Release Type | TM | Short-Circuit Performance Level | C |
| Standards | IEC | Sub-type | A1 |
| Terminal Connection Type | Front | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | eClass | V11.1 : 27370409 |
| Manufacturer ID | 1SDA066485R1 |
Specifications may be subject to change without notice
