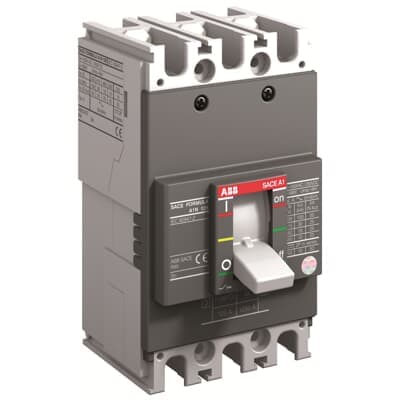

A1N 125 MF 80-960 3p F F
Product ID:93434
Updated: 2026/4/3
Key Features
- 1Achieve high electrical durability with 1500 operational cycles. 2、Ensure reliable protection with IEC-standard short-circuit breaking capacity. 3、Reduce energy waste through efficient power loss per pole. 4、Simplify installation using the front terminal connection type. 5、Automate circuit breaking with the thermomagnetic release (TMF).
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SDL000183R0001 9AKK108467A6707 | Product Net Width | 76.2 mm |
| Product Net Height | 130 mm | Product Net Depth / Length | 60 mm |
| Product Net Weight | 0.75 kg | Product Main Type | SACE FORMULA DSA |
| Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
| Version | F | Electrical Durability | 1500 cycle |
| Mechanical Durability | Nr. Operations 8500 cycle | Number of Poles | 3P |
| Rated Current (In) | Main Circuit 80 A | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V | Rated Operational Voltage | 550 V AC 250 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 V AC) 50 kA (380 V AC) 18 kA (415 V AC) 7.5 kA (440 V AC) 6.25 kA (480 V AC) 4.5 kA (500 V AC) 2.5 kA (250 V DC) 2 Poles in Series 5 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (240 V AC) 100 kA (380 V AC) 36 kA (415 V AC) 36 kA (440 V AC) 25 kA (480 V AC) 18 kA (500 V AC) 10 kA (250 V DC) 10 kA |
| Rated Uninterrupted Current (Iu) | 125 A | Release | MF |
| Release Type | M | Short-Circuit Performance Level | N |
| Standards | IEC | Sub-type | A1 |
| Terminal Connection Type | Front | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA076714R1 |
Specifications may be subject to change without notice
