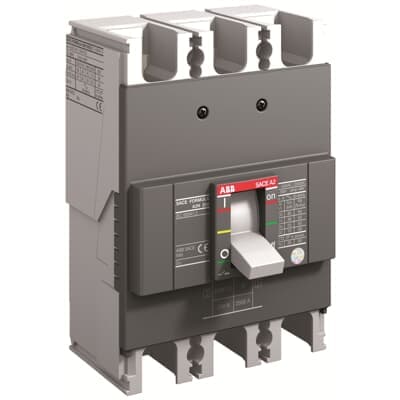

A2B 250 MF 200-2400 3p F F
Product ID:93452
Updated: 2026/4/3
Key Features
- 1Achieve high interrupt ratings of 25 kA at 240V AC. 2、Ensure reliable protection with thermal magnetic release. 3、Deliver robust durability for 4000 electrical cycles. 4、Simplify installation via front terminal connections. 5、Meet strict IEC standards for safety compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Environmental Information | 1SDL000183R0001 9AKK108467A6707 | Product Net Width | 105 mm |
| Product Net Height | 150 mm | Product Net Depth / Length | 60 mm |
| Product Net Weight | 1.3 kg | Product Main Type | SACE FORMULA DSA |
| Product Name | Moulded Case Circuit Breaker | Product Type | Automatic Circuit Breaker |
| Version | F | Electrical Durability | 4000 cycle |
| Mechanical Durability | 10000 cycle | Number of Poles | 3P |
| Rated Current (In) | Main Circuit 200 A | Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V | Rated Operational Voltage | 550 V AC 250 V DC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 V AC) 12.5 kA (380 V AC) 9 kA (415 V AC) 9 kA (440 V AC) 7.5 kA (480 V AC) 7.5 kA (500 V AC) 2.5 kA (250 V DC) 2 Poles in Series 9 kA | Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (240 V AC) 25 kA (380 V AC) 18 kA (415 V AC) 18 kA (440 V AC) 15 kA (480 V AC) 15 kA (500 V AC) 5 kA (250 V DC) 2 Poles in Series 18 kA |
| Rated Uninterrupted Current (Iu) | 250 A | Release | MF |
| Release Type | M | Short-Circuit Performance Level | B |
| Standards | IEC | Sub-type | A2 |
| Terminal Connection Type | Front | ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 | Manufacturer ID | 1SDA076719R1 |
Specifications may be subject to change without notice
