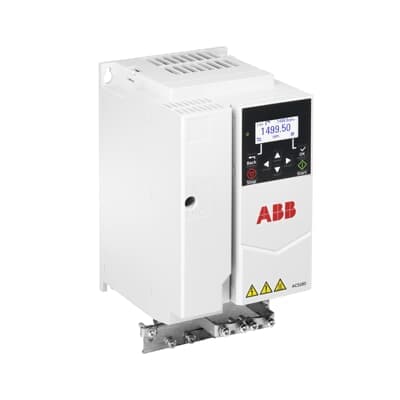

ACS180-04N-12A6-4
Product ID:70019
Updated: 2026/7/14
Key Features
- 1Achieve up to 98% operational efficiency at nominal power.
- 2Utilize sensorless vector control for precise torque and speed.
- 3Ensure safety with the integrated Safe Torque Off (STO) feature.
- 4Enhance reliability using coated PCBs and minimized airflow design.
- 5Save panel space with a compact build and built-in EMC filter.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 0.92 kg | Product Net Depth / Length | 143 mm |
| Product Net Height | 209 mm | Product Net Width | 70 mm |
| Package Level 1 Depth / Length | 290 mm | Package Level 1 Height | 200 mm |
| Package Level 1 Width | 180 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R2 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 9.4 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 12 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 12.6 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 4 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 5.5 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 5.5 kW | Apparent Power Output | 8.7 kV·A |
| Efficiency Level | IE2 | Standby Loss | 12 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| SCIP | c4c7e908-d15d-4601-993d-bf271f952213 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3AXD50000814039 |
Specifications may be subject to change without notice
