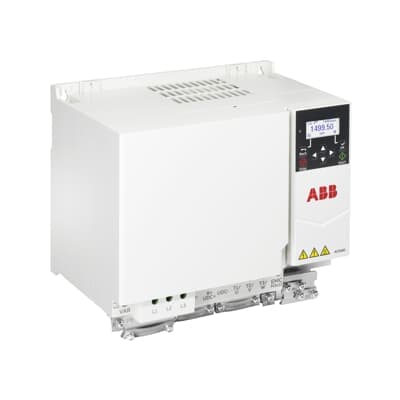

ACS180-04S-055A-2
Product ID:70602
Updated: 2026/7/14
Key Features
- 1Achieve 98% efficiency at nominal power to reduce energy costs.
- 2Utilize sensorless vector control for precise torque without encoder feedback.
- 3Operate reliably in heavy-duty conditions up to 60°C ambient temperature.
- 4Ensure safety with built-in SIL 3 compliant STO feature.
- 5Integrate easily via Modbus RTU and RJ45 for remote monitoring.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 5.3 kg | Product Net Depth / Length | 178 mm |
| Product Net Height | 206 mm | Product Net Width | 260 mm |
| Package Level 1 Depth / Length | 225 mm | Package Level 1 Height | 115 mm |
| Package Level 1 Width | 220 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R4 | Input Voltage (Uin) | 200 ⦠240 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 46.2 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 50.2 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 55 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 11 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 11 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 11 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | SCIP | 2fa266a4-ca31-4604-a9f6-9646f8174b5e Finland (FI) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
| Manufacturer ID | 3AXD50000814602 |
Specifications may be subject to change without notice
