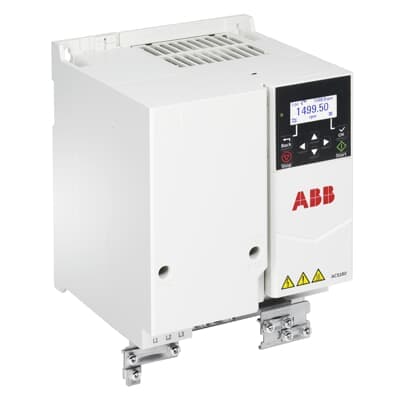

ACS180-04S-25A0-2
Product ID:71393
Updated: 2026/7/14
Key Features
- 1Optimize motor performance for pumps, fans, and compressors.
- 2Ensure safety with built-in SIL 3 Safe Torque Off.
- 3Save cabinet space using the compact drive design.
- 4Reduce energy consumption by up to 30 percent.
- 5Simplify setup with an intuitive user interface.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 3.3 kg | Product Net Depth / Length | 174 mm |
| Product Net Height | 205 mm | Product Net Width | 170 mm |
| Package Level 1 Depth / Length | 225 mm | Package Level 1 Height | 115 mm |
| Package Level 1 Width | 220 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R3 | Input Voltage (Uin) | 200 ⦠240 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 17.5 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 24.2 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 25 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 4 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 5.5 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 5.5 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | SCIP | 86ca23c2-e410-4104-a24d-67fabcf299dc Finland (FI) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
| Manufacturer ID | 3AXD50000814251 |
Specifications may be subject to change without notice
