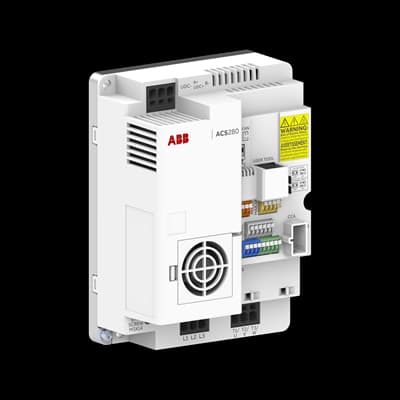

ACS280-04S-17A5-2
Product ID:93310
Updated: 2026/7/14
Key Features
- 1Achieve accurate speed and torque control with sensorless vector control.
- 2Reduce high-frequency emissions for safe operation in industrial or domestic environments.
- 3Ensure machine and personnel safety with SIL 3 compliance.
- 4Optimize cabinet space with a compact drive size, ideal for side-by-side installation.
- 5Monitor and adjust drive parameters remotely using a Bluetooth control panel.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 1.32 kg | Product Net Depth / Length | 90 mm |
| Product Net Height | 196 mm | Product Net Width | 141 mm |
| Package Level 1 Depth / Length | 341 mm | Package Level 1 Height | 225 mm |
| Package Level 1 Width | 575 mm | Package Level 1 Units | 10 carton |
| Number of Phases | 3 | Degree of Protection | IP00 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R2 | Input Voltage (Uin) | 200 ⦠240 V |
| Mounting Type | Module | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 12.2 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 16.7 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 17.5 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 3 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 4 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 4 kW | UNSPSC | 39122001 |
| Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3AXD50001071813 |
Specifications may be subject to change without notice
