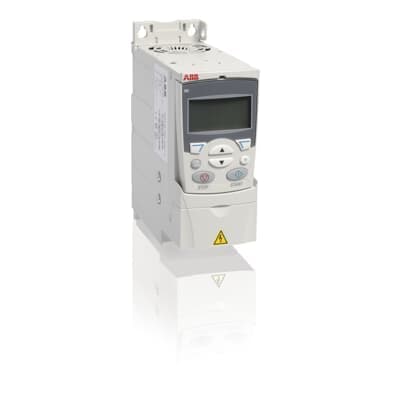

ACS310-03U-02A1-4
Product ID:91298
Updated: 2026/4/3
Key Features
- 1Reduce energy costs by up to 50% with efficient motor control. 2、Simplify cabinet mounting using a compact, uniform design. 3、Control multiple pumps or fans without an external PLC. 4、Increase robustness with coated control boards for reliability. 5、Speed up commissioning using predefined I/O and assistants.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 2.6 lb | Product Net Depth / Length | 6.34 in |
| Product Net Height | 9.41 in | Product Net Width | 2.76 in |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Frequency (f) | 50/60 Hz | Frame Size | R0 |
| Input Voltage (Uin) | 380 ... 480 V | Mounting Type | Wall-mounting |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 2.1 A | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 0.75 Hp |
| Apparent Power Output | 1.7 kV·A | Efficiency Level | IE2 |
| Standby Loss | 8 W | Temperature Rating | Maximum 40 °C |
| eClass | ETIM 7 | UNSPSC | 39122001 |
| SCIP | ef346626-fde1-43b2-ae88-2b8d14049b9d Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | AC Drive | Manufacturer ID | 3AUA0000049481 |
Specifications may be subject to change without notice
