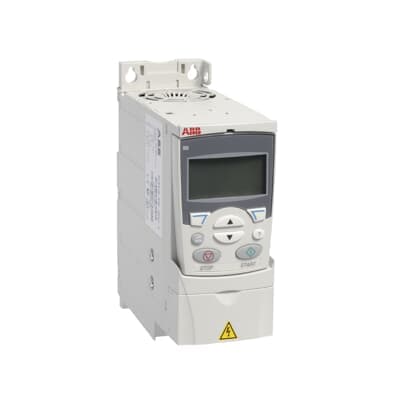

ACS310-03U-07A4-2
Product ID:71352
Updated: 2026/4/3
Key Features
- 1Deliver reliable power with a 7.4 A current rating. 2、Install easily using the compact design and blank panel. 3、Protect against dust and moisture with a robust IP20/IP20 enclosure. 4、Apply for 3-phase low voltage general purpose applications. 5、Integrate seamlessly via the embedded Modbus EIA-485 interface.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 3.1 lb | Product Net Depth / Length | 6.34 in |
| Product Net Height | 9.41 in | Product Net Width | 2.76 in |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Frequency (f) | 50/60 Hz | Frame Size | R1 |
| Input Voltage (Uin) | 200 ... 240 V | Mounting Type | Wall-mounting |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 7.4 A | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 1.5 Hp |
| Apparent Power Output | 2.9 kV·A | Efficiency Level | IE2 |
| Standby Loss | 7 W | Temperature Rating | Maximum 40 °C |
| eClass | ETIM 7 | UNSPSC | 39122001 |
| SCIP | f1e04c62-cc4b-446d-ad73-3ee1ba33dd03 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | AC Drive | Manufacturer ID | 3AUA0000049471 |
Specifications may be subject to change without notice
