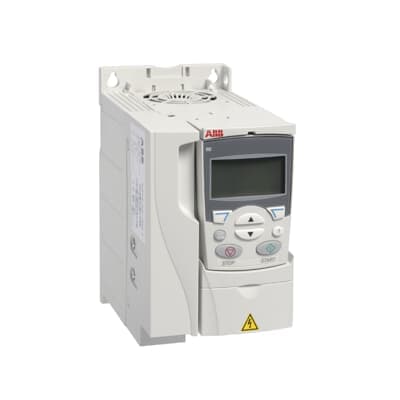

ACS310-03U-10A8-2
Product ID:71377
Updated: 2026/7/14
Key Features
- 1Display energy savings and CO2 reduction with built-in calculators.
- 2Control booster pumps and centrifugal fans efficiently.
- 3Deliver reliable 3 HP (4.5 kW) motor performance.
- 4Protect against solids and water with an IP20 enclosure.
- 5Simplify setup using DIN Rail or Panel Mount compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 4 lb | Product Net Depth / Length | 6.5 in |
| Product Net Height | 9.41 in | Product Net Width | 4.13 in |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Frequency (f) | 50/60 Hz | Frame Size | R2 |
| Input Voltage (Uin) | 380 ... 480 V | Mounting Type | Wall-mounting |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 10.8 A | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 3 Hp |
| Apparent Power Output | 4.3 kV·A | Efficiency Level | IE2 |
| Standby Loss | 8 W | Temperature Rating | Maximum 40 °C |
| eClass | ETIM 7 | UNSPSC | 39122001 |
| SCIP | b0e4e66a-b44c-4d3e-b08c-b215ee51efe7 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | AC Drive | Manufacturer ID | 3AUA0000049474 |
Specifications may be subject to change without notice
