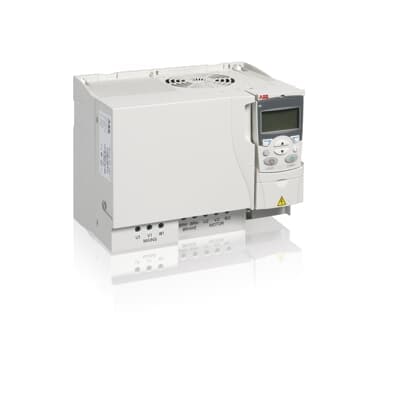

ACS310-03U-50A8-2
Product ID:71368
Updated: 2026/4/3
Key Features
- 1Deliver up to 15 HP at 50.8 A for demanding industrial tasks. 2、Ensure flexibility with 200-240V compatibility in various environments. 3、Optimize performance in variable torque applications like booster pumps. 4、Simplify communication and control with an embedded Modbus interface. 5、Provide reliable protection against environmental factors for long-term operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 11.2 lb | Product Net Depth / Length | 6.65 in |
| Product Net Height | 9.61 in | Product Net Width | 10.24 in |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Frequency (f) | 50/60 Hz | Frame Size | R4 |
| Input Voltage (Uin) | 200 ... 240 V | Mounting Type | Wall-mounting |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 16.5 A | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 5 Hp |
| Apparent Power Output | 20 kV·A | Efficiency Level | IE2 |
| Standby Loss | 11 W | Temperature Rating | Maximum 40 °C |
| eClass | ETIM 7 | UNSPSC | 39122001 |
| SCIP | a77e82b6-1b9a-44a4-b19a-cb656dc2d1b5 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | AC Drive | Manufacturer ID | 3AUA0000049479 |
Specifications may be subject to change without notice
