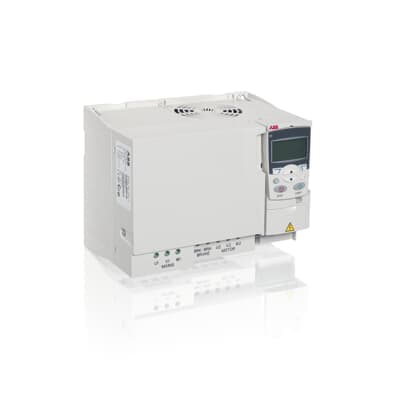

ACS355-03E-38A0-4
Product ID:91766
Updated: 2026/7/14
Key Features
- 1Achieve precise motor control with a 0-600Hz speed range.
- 2Ensure reliable operation meeting IEC/EN 61800-3 C3 standards.
- 3Enhance safety with SIL 3 compliance for critical applications.
- 4Connect with 2 AI, 5 DI, 1 AO, 1 DO, and 1 relay.
- 5Protect with 150% overload for 60s and full-load braking.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 3.4 kg | Product Net Depth / Length | 169 mm |
| Product Net Height | 181 mm | Product Net Width | 260 mm |
| Package Level 1 Depth / Length | 425 mm | Package Level 1 Height | 260 mm |
| Package Level 1 Width | 240 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 38 A |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 18.5 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3ABD0000058254 |
Specifications may be subject to change without notice
