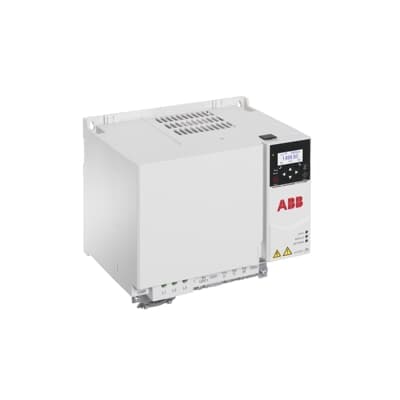

ACS380-040S-055A-2
Product ID:71205
Updated: 2026/7/14
Key Features
- 1Select a compact and robust drive for harsh industrial environments.
- 2Configure power from 0.37 to 22 kW with multiple voltage options.
- 3Integrate seamlessly using preconfigured fieldbus protocols.
- 4Ensure consistent performance with coated boards and rigorous testing.
- 5Simplify safety setup with built-in STO and limit switch support.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 5.3 kg | Product Net Depth / Length | 181 mm |
| Product Net Height | 170 mm | Product Net Width | 260 mm |
| Package Level 1 Units | 0 carton | Number of Phases | 3 |
| Degree of Protection | IP20 | Enclosure Type NEMA | Open Type |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R4 |
| Input Voltage (Uin) | 200 ⦠240 V | Mounting Type | Module_NO UNIT$ |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 48 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 52.8 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 55 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 11 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 11 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 11 kW |
| Efficiency Level | IE2 | UNSPSC | 39122001 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | FREQUENCY CONVERTER |
| Manufacturer ID | 3ABD00050487 |
Specifications may be subject to change without notice
