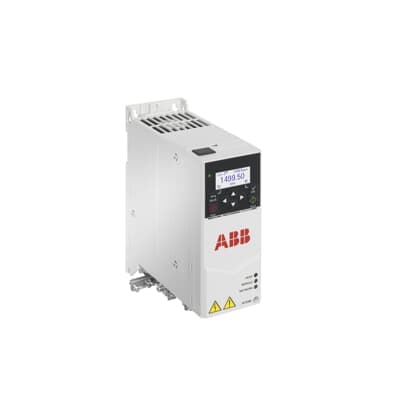

ACS380-040S-06A9-1
Product ID:71327
Updated: 2026/7/14
Key Features
- 1Optimize machine building with a robust and compact design.
- 2Cover applications from 1/3 to 30 Hp with a wide power range.
- 3Ensure compliance using EMC and connectivity variants with built-in filters.
- 4Enhance durability in harsh conditions with coated circuit boards.
- 5Simplify setup via a built-in panel and multilingual interface.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 1.4 kg | Product Net Depth / Length | 176 mm |
| Product Net Height | 223 mm | Product Net Width | 70 mm |
| Package Level 1 Depth / Length | 280 mm | Package Level 1 Height | 270 mm |
| Package Level 1 Width | 145 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R1 | Input Voltage (Uin) | 200 ⦠240 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 4.8 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 6.6 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 6.9 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 0.75 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 1.1 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 1.1 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3ABD00045159 |
Specifications may be subject to change without notice
