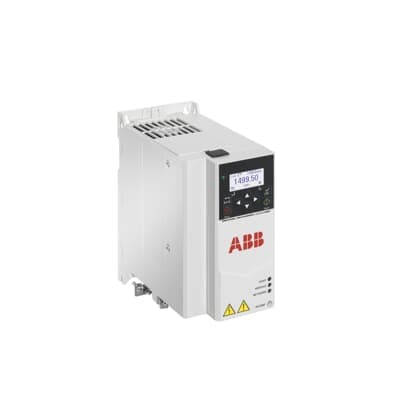

ACS380-040S-12A6-4
Product ID:70034
Updated: 2026/4/3
Key Features
- 1Integrate seamlessly with major industrial automation systems. 2、Enable safe motor stoppage via built-in PROFIsafe over PROFINET. 3、Customize drive software to match specific application requirements. 4、Cover a wide power range from 0.25 kW to 22 kW. 5、Ensure 10+ years of reliable operation with a robust C3 EMC filter.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 2 kg | Product Net Depth / Length | 176 mm |
| Product Net Height | 223 mm | Product Net Width | 95 mm |
| Package Level 1 Depth / Length | 280 mm | Package Level 1 Height | 270 mm |
| Package Level 1 Width | 170 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R2 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 9.4 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 12 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 12.6 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 4 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 5.5 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 5.5 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | FREQUENCY CONVERTER | Manufacturer ID | 3ABD00045128 |
Specifications may be subject to change without notice
