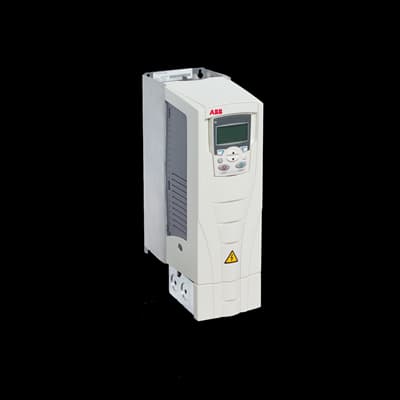

ACS510-01-07A2-4
Product ID:91537
Updated: 2026/7/14
Key Features
- 1Achieve high efficiency (IE2) for optimal power usage.
- 2Deliver reliable performance with 3 kW output power.
- 3Ensure robust protection with an IP21 rating.
- 4Install easily using versatile wall-mounted type.
- 5Receive a 12-month warranty for peace of mind.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 6.1 kg | Product Net Depth / Length | 465 mm |
| Product Net Height | 365 mm | Product Net Width | 225 mm |
| Package Level 1 Depth / Length | 490 mm | Package Level 1 Height | 400 mm |
| Package Level 1 Width | 240 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R1 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 7.2 A |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 3 kW | Apparent Power Output | 5.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 11 W |
| Temperature Rating | 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00015744-D |
Specifications may be subject to change without notice
