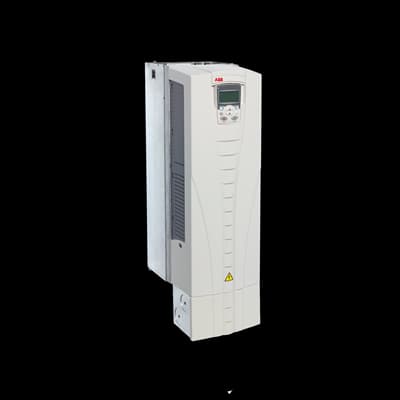

ACS510-01-088A-4
Product ID:92497
Updated: 2026/7/14
Key Features
- 1Optimize 45kW motor control with high-performance frequency conversion.
- 2Ensure operational safety and compliance with CE certification.
- 3Reduce energy waste with minimal standby loss of just 18 W.
- 4Accelerate project timelines through precise delivery and quick installation.
- 5Achieve reliable, trouble-free operation in demanding transducer applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 26 kg | Product Net Depth / Length | 800 mm |
| Product Net Height | 410 mm | Product Net Width | 310 mm |
| Package Level 1 Depth / Length | 800 mm | Package Level 1 Height | 400 mm |
| Package Level 1 Width | 300 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 88 A |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 45 kW | Apparent Power Output | 61 kV·A |
| Efficiency Level | IE2 | Standby Loss | 18 W |
| Temperature Rating | 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00021616-D |
Specifications may be subject to change without notice
