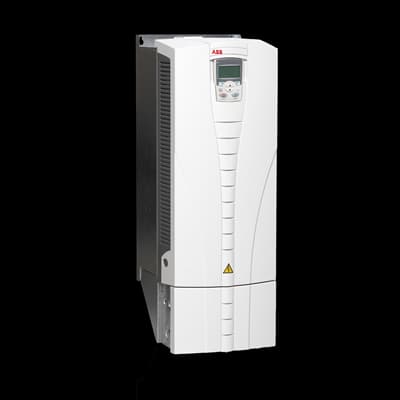

ACS510-01-125A-4
Product ID:82239
Updated: 2026/4/3
Key Features
- 1Achieve IE2 efficiency for reduced energy consumption. 2、Utilize advanced control with intuitive operation. 3、Ensure reliable performance with harmonic reduction. 4、Match versatile applications for pumps and fans. 5、Simplify installation with easy fieldbus integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 45 kg | Product Net Depth / Length | 814 mm |
| Product Net Height | 306 mm | Product Net Width | 315 mm |
| Package Level 1 Depth / Length | 830 mm | Package Level 1 Height | 450 mm |
| Package Level 1 Width | 335 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R5 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 125 A |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 55 kW | Apparent Power Output | 87 kV·A |
| Efficiency Level | IE2 | Standby Loss | 42 W |
| Temperature Rating | 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00019055-D |
Specifications may be subject to change without notice
