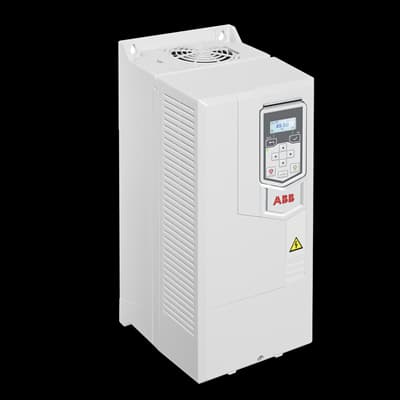

ACS530-01-046A-4
Product ID:71661
Updated: 2026/7/14
Key Features
- 1Reduce size and weight with a patented swinging choke equivalent to 5% line impedance.
- 2Integrate seamlessly using optional plug-in fieldbus modules for automation networks.
- 3Ensure protection with only Class T fuses required for high-speed short-circuit safety.
- 4Simplify commissioning via a removable operator panel and standard graphical interface.
- 5Meet EU safety standards including CE, Low Voltage, Machinery, EMC, and RoHS III Directives.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 14.5 kg | Product Net Depth / Length | 228 mm |
| Product Net Height | 490 mm | Product Net Width | 203 mm |
| Package Level 1 Depth / Length | 610 mm | Package Level 1 Height | 425 mm |
| Package Level 1 Width | 290 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R3 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 42.8 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 46 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 22 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 22 kW | Apparent Power Output | 31.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 16 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039913-D |
Specifications may be subject to change without notice
