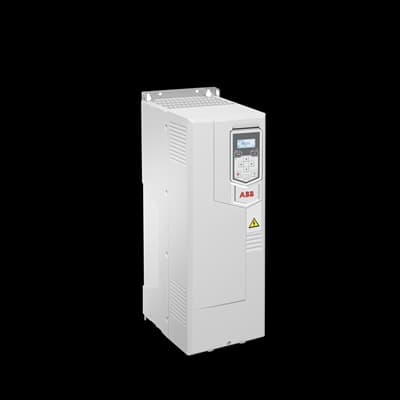

ACS530-01-073A-4
Product ID:92131
Updated: 2026/7/14
Key Features
- 1Enhance safety with built-in STO (Safe Torque Off).
- 2Operate easily via an advanced multi-language control panel.
- 3Optimize energy use with the integrated energy saving calculator.
- 4Ensure reliability with a compact design and independent air ducts.
- 5Integrate seamlessly supporting various communication protocols.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 18.5 kg | Product Net Depth / Length | 257 mm |
| Product Net Height | 636 mm | Product Net Width | 203 mm |
| Package Level 1 Depth / Length | 720 mm | Package Level 1 Height | 380 mm |
| Package Level 1 Width | 300 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R4 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 68.4 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 73 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 37 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 37 kW | Apparent Power Output | 51.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 19 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039812-D |
Specifications may be subject to change without notice
