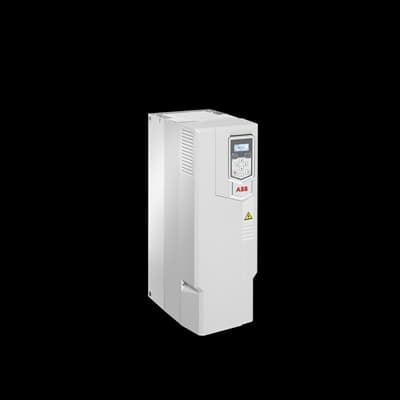

ACS530-01-088A-4
Product ID:71667
Updated: 2026/4/3
Key Features
- 1Simplify commissioning with an easy-to-use graphical interface. 2、Ensure personnel safety with SIL3 compliance certification. 3、Integrate seamlessly using built-in Modbus RTU communication. 4、Operate stably in harsh conditions with enhanced coating. 5、Reduce energy consumption via optimized pump and fan control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 26.5 kg | Product Net Depth / Length | 295 mm |
| Product Net Height | 596 mm | Product Net Width | 203 mm |
| Package Level 1 Depth / Length | 830 mm | Package Level 1 Height | 510 mm |
| Package Level 1 Width | 280 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R5 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 82.7 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 88 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 45 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 45 kW | Apparent Power Output | 61.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 21 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039813-D |
Specifications may be subject to change without notice
