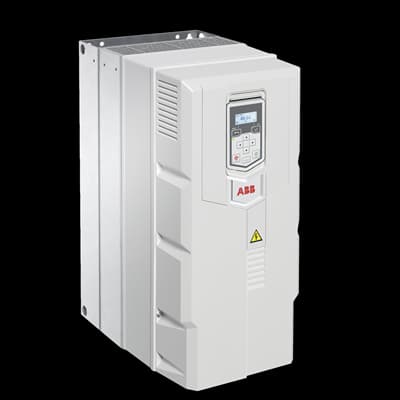

ACS530-01-145A-4
Product ID:71648
Updated: 2026/7/14
Key Features
- 1Control compressors, conveyors, pumps, centrifuges, and fans.
- 2Utilize a rugged and robust design for various environments.
- 3Enable fast setup, commissioning, use, and maintenance.
- 4Ensure compatibility with a wide range of industrial equipment.
- 5Receive a 12 to 18-month warranty for guaranteed reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 42.6 kg | Product Net Depth / Length | 369 mm |
| Product Net Height | 548 mm | Product Net Width | 252 mm |
| Package Level 1 Depth / Length | 850 mm | Package Level 1 Height | 580 mm |
| Package Level 1 Width | 310 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R6 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 138 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 145 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 75 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 75 kW | Apparent Power Output | 100.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 36 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039815-D |
Specifications may be subject to change without notice
