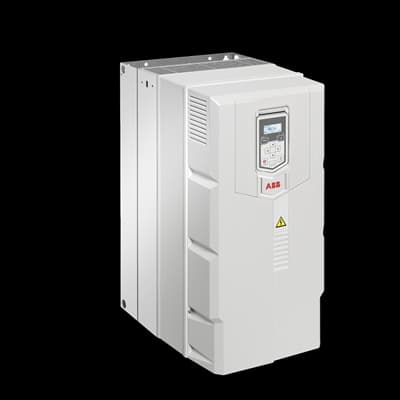

ACS530-01-206A-4
Product ID:71658
Updated: 2026/4/3
Key Features
- 1Utilize enhanced coated circuit boards for stable operation in harsh environments. 2、Access a versatile power range from 0.75 to 250 kW. 3、Incorporate built-in Safe Torque Off (STO) for personnel safety. 4、Simplify commissioning with a compact design and graphical interface. 5、Achieve IE2 efficiency to reduce energy consumption and costs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 49.6 kg | Product Net Depth / Length | 370 mm |
| Product Net Height | 600 mm | Product Net Width | 284 mm |
| Package Level 1 Depth / Length | 970 mm | Package Level 1 Height | 600 mm |
| Package Level 1 Width | 380 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R7 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 196 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 206 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 110 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 110 kW | Apparent Power Output | 143.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 36 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039817-D |
Specifications may be subject to change without notice
