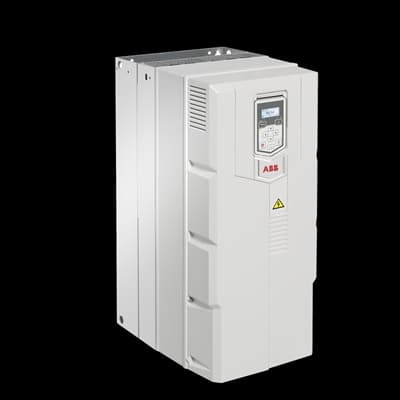

ACS530-01-246A-4
Product ID:92122
Updated: 2026/4/3
Key Features
- 1Deliver 132 kW with a 246A continuous current rating. 2、Ensure safety compliance with EU standards for equipment and personnel. 3、Reduce energy consumption and costs using the built-in saving calculator. 4、Integrate easily with automation networks for seamless connectivity. 5、Facilitate easy installation and reduce space requirements.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 62.8 kg | Product Net Depth / Length | 393 mm |
| Product Net Height | 680 mm | Product Net Width | 300 mm |
| Package Level 1 Depth / Length | 1160 mm | Package Level 1 Height | 650 mm |
| Package Level 1 Width | 490 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP20 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R8 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Module_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 234 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 246 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 132 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 132 kW | Apparent Power Output | 170.0 kV·A |
| Efficiency Level | IE2 | Standby Loss | 47 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | Product Not in WEEE Scope | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00039818-D |
Specifications may be subject to change without notice
