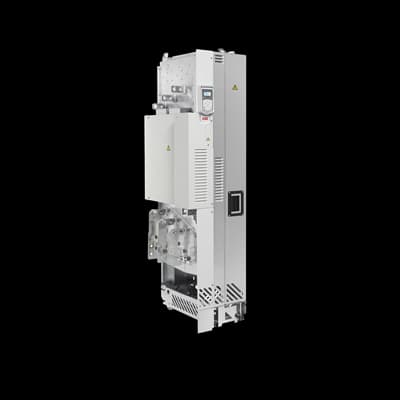

ACS530-04-505A-4
Product ID:91739
Updated: 2026/4/3
Key Features
- 1Operate reliably in harsh conditions with a compact, robust design. 2、Simplify selection and cut costs using built-in AC choke and EMC filter. 3、Reduce energy consumption by up to 30% over the drive's lifecycle. 4、Ensure compliance with Ecodesign and IE2 efficiency standards. 5、Protect personnel and equipment with Safe Torque Off (STO) safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 161 kg | Product Net Depth / Length | 529 mm |
| Product Net Height | 1462 mm | Product Net Width | 350 mm |
| Package Level 1 Depth / Length | 2050 mm | Package Level 1 Height | 500 mm |
| Package Level 1 Width | 645 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP00 |
| Enclosure Type NEMA | Open Type | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R10 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Cabinet-built_NO UNIT$ | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 485 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 505 A | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 250 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 250 kW | Apparent Power Output | 350 kV·A |
| Efficiency Level | IE2 | Standby Loss | 396 W |
| Temperature Rating | Maximum 40 °C | UNSPSC | 39122001 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00050302-D |
Specifications may be subject to change without notice
