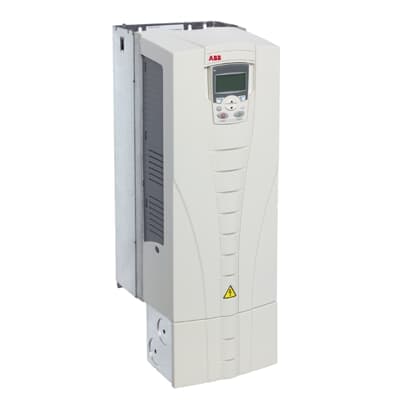

ACS550-01-044A-4
Product ID:70405
Updated: 2026/7/14
Key Features
- 1Deliver 22 kW rated power for demanding industrial applications.
- 2Ensure stable performance with a reliable 44 A output current.
- 3Protect against harsh conditions using the robust IP21 enclosure rating.
- 4Connect to a versatile 380-480 V supply voltage range easily.
- 5Simplify installation with compact dimensions and a 24 kg weight.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 22.82 kg | Product Net Depth / Length | 262 mm |
| Product Net Height | 689 mm | Product Net Width | 203 mm |
| Number of Phases | 3 phase | Frequency (f) | 48 ... 63 Hz |
| Frame Size | R4 | Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Wall Mounting | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 38 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 44 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 18.5 kW 25 Hp |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 22 kW 30 Hp | UNSPSC | 39122001 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency converter |
| Manufacturer ID | 3AUA0000002545 |
Specifications may be subject to change without notice
