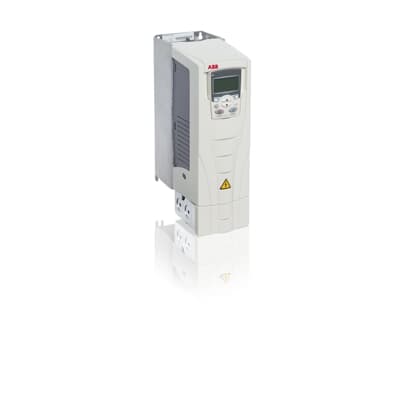

ACS550-01-06A9-4
Product ID:92850
Updated: 2026/4/3
Key Features
- 1Display energy savings in kWh, CO2, or currency. 2、Require no customizing for wide application use. 3、Meet IEC EN61800-3 standards for industrial environments. 4、Suit both variable and constant torque applications. 5、Feature an intelligent control panel with assistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 6.1 kg | Product Net Depth / Length | 465 mm |
| Product Net Height | 365 mm | Product Net Width | 225 mm |
| Package Level 1 Depth / Length | 490 mm | Package Level 1 Height | 400 mm |
| Package Level 1 Width | 240 mm | Number of Phases | 3 |
| Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R1 |
| Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 5.4 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 6.9 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 2.2 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 3 kW |
| Efficiency Level | IE2 | UNSPSC | 39122001 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3AUA0000002415-D |
Specifications may be subject to change without notice
