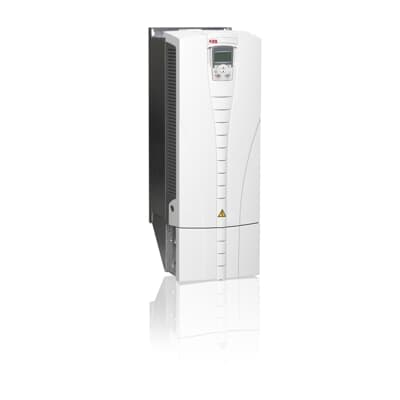

ACS550-01-125A-4
Product ID:70591
Updated: 2026/7/14
Key Features
- 1Control motor speed efficiently with a 125A nominal output.
- 2Protect the drive in industrial settings with an IP21 enclosure rating.
- 3Install easily using the wall-mounted design for space savings.
- 4Operate reliably with 380-480V input and 50/60 Hz frequency.
- 5Deliver 55 kW of power for pumps, fans, and conveyors.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 45 kg | Product Net Depth / Length | 814 mm |
| Product Net Height | 306 mm | Product Net Width | 315 mm |
| Package Level 1 Depth / Length | 830 mm | Package Level 1 Height | 450 mm |
| Package Level 1 Width | 335 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R5 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 87 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 125 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 45 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 55 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD68589657 |
Specifications may be subject to change without notice
