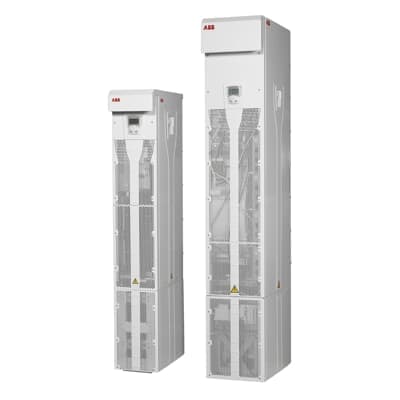

ACS550-02-602A-4
Product ID:70459
Updated: 2026/7/14
Key Features
- 1Deliver high nominal output power of 315 kW and 500 HP.
- 2Handle heavy-duty loads with 280 kW and 450 HP capability.
- 3Save space with compact dimensions of 2120x730x510 mm.
- 4Protect against harsh environments using a durable IP21 enclosure.
- 5Install easily as a free-standing unit.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 250 kg | Product Net Depth / Length | 730 mm |
| Product Net Height | 2120 mm | Product Net Width | 510 mm |
| Number of Phases | 3 phase | Frequency (f) | 48 ... 63 Hz |
| Frame Size | R8 | Input Voltage (Uin) | 380 ... 480 V |
| Mounting Type | Free standing units | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 515 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 602 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 280 kW 450 Hp |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 315 kW 500 Hp | UNSPSC | 39122001 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency converter |
| Manufacturer ID | 64727087 |
Specifications may be subject to change without notice
