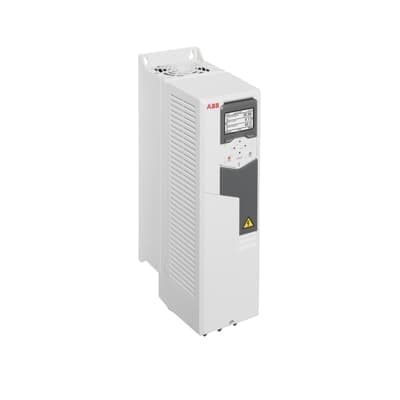

ACS580-01-018A-4
Product ID:91563
Updated: 2026/7/14
Key Features
- 1Control compressors, conveyors, pumps, and more across diverse industries.
- 2Simplify setup with a straightforward menu and assistants for fast commissioning.
- 3Ensure reliability with a rugged design suitable for diverse environments including IP21.
- 4Achieve IE2 efficiency level for significant energy savings in broad applications.
- 5Manage processes comprehensively with analog and digital inputs/outputs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 9 kg | Product Net Depth / Length | 227 mm |
| Product Net Height | 394 mm | Product Net Width | 125 mm |
| Package Level 1 Depth / Length | 320 mm | Package Level 1 Height | 630 mm |
| Package Level 1 Width | 220 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R2 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 12.6 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 16.2 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 17 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 5.5 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 7.5 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 7.5 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD50000038959 |
Specifications may be subject to change without notice
