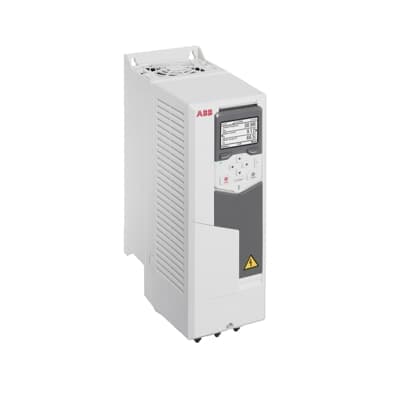

ACS580-01-05A7-4
Product ID:71217
Updated: 2026/4/3
Key Features
- 1Achieve up to 92.5% efficiency to reduce energy costs. 2、Control compressors, conveyors, pumps, and fans in light industries. 3、Rely on a rugged IP55 design for demanding environments. 4、Utilize straightforward menus for fast setup and maintenance. 5、Integrate seamlessly with MODBUS, PROFIBUS, and EtherNet/IP.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 4.6 kg | Product Net Depth / Length | 223 mm |
| Product Net Height | 303 mm | Product Net Width | 125 mm |
| Package Level 1 Units | 0 carton | Number of Phases | 3 |
| Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R1 |
| Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 4 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 5.3 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 5.6 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 1.5 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 2.2 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 2.2 kW |
| Efficiency Level | IE2 | UNSPSC | 39122001 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD50000038940 |
Specifications may be subject to change without notice
