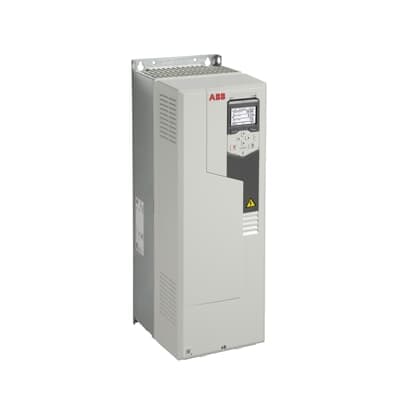

ACS580-01-073A-4
Product ID:70843
Updated: 2026/7/14
Key Features
- 1Control a broad range of variable and constant torque applications.
- 2Simplify ordering and commissioning to reduce setup time.
- 3Utilize the PC tool for easy drive setup and maintenance.
- 4Boost energy efficiency with the built-in energy optimizer.
- 5Operate safely in harsh environments with robust protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 19 kg | Product Net Depth / Length | 258 mm |
| Product Net Height | 600 mm | Product Net Width | 203 mm |
| Package Level 1 Units | 0 carton | Number of Phases | 3 |
| Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R4 |
| Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 61 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 68.4 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 73 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 30 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 37 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 37 kW |
| Efficiency Level | IE2 | UNSPSC | 39122001 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00045434-D |
Specifications may be subject to change without notice
