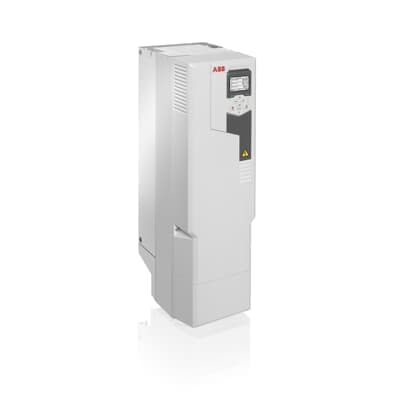

ACS580-01-106A-4
Product ID:70851
Updated: 2026/4/3
Key Features
- 1Control compressors, pumps, and conveyors with versatile plug-and-play readiness. 2、Deploy in harsh conditions thanks to a rugged, robust IP21 enclosure design. 3、Deliver 55 kW of high output power with a 106 A input current capacity. 4、Integrate seamlessly using MODBUS, DeviceNet, PROFIBUS, CAN, EtherNet/IP, and PROFINET IO. 5、Configure and maintain quickly via a straightforward menu and setup assistants.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 37 kg | Product Net Depth / Length | 295 mm |
| Product Net Height | 732 mm | Product Net Width | 203 mm |
| Package Level 1 Units | 0 carton | Number of Phases | 3 |
| Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R5 |
| Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 87 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 100 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 106 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 45 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 55 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 55 kW |
| Efficiency Level | IE2 | UNSPSC | 39122001 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00045436-D |
Specifications may be subject to change without notice
