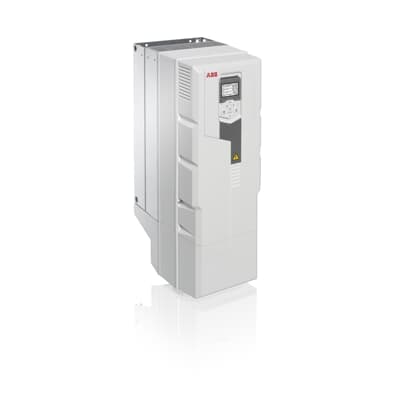

ACS580-01-145A-4
Product ID:70807
Updated: 2026/7/14
Key Features
- 1Simplify setup with straightforward menus and commissioning assistants.
- 2Ensure reliability with a rugged design for harsh industrial environments.
- 3Deliver 75 kW and 145 A for powerful, efficient motor control.
- 4Enhance safety with dual-channel SIL3 Safe Torque Off (STO).
- 5Control diverse equipment like pumps, fans, and conveyors across industries.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 45 kg | Product Net Depth / Length | 369 mm |
| Product Net Height | 727 mm | Product Net Width | 252 mm |
| Package Level 1 Depth / Length | 580 mm | Package Level 1 Height | 850 mm |
| Package Level 1 Width | 310 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R6 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 105 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 138 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 145 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 55 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 75 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 75 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00045437-D |
Specifications may be subject to change without notice
