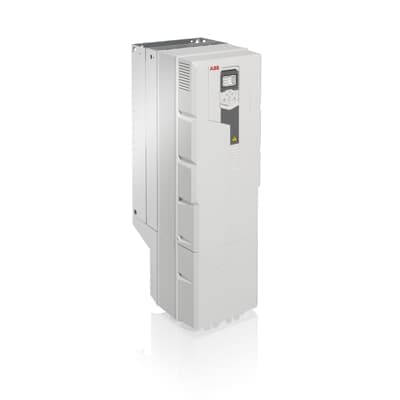

ACS580-01-293A-4
Product ID:93125
Updated: 2026/4/3
Key Features
- 1Simplify processes with all-compatible drives for enhanced energy efficiency. 2、Control pumps, fans, and conveyors with straightforward setup. 3、Access all essential features as standard, eliminating extra hardware. 4、Rely on a rugged design for food, plastic, and textile environments. 5、Plug in ready to control compressors and other torque applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 86 kg | Product Net Depth / Length | 393 mm |
| Product Net Height | 965 mm | Product Net Width | 300 mm |
| Package Level 1 Units | 0 carton | Number of Phases | 3 |
| Degree of Protection | IP21 | Enclosure Type NEMA | Type1 |
| Frequency (f) | 47.5 ... 63 Hz | Frame Size | R8 |
| Input Voltage (Uin) | 380 ⦠480 V | Mounting Type | Wall-mounted_NO UNIT$ |
| Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 246 A | Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 278 A |
| Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 293 A | Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 132 kW |
| Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 160 kW | Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 160 kW |
| Efficiency Level | IE2 | UNSPSC | 39122001 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 3ABD00045441-D |
Specifications may be subject to change without notice
