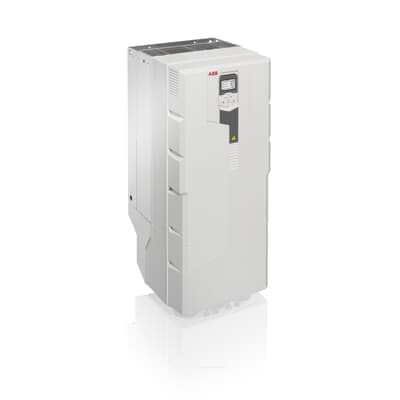

ACS580-01-430A-4
Product ID:90965
Updated: 2026/4/3
Key Features
- 1Simplify energy efficiency for diverse industrial applications. 2、Control compressors, conveyors, mixers, pumps, and fans with plug-in readiness. 3、Ensure reliable operation with an IP21 protection rating. 4、Scale operations with a versatile drive for various torque needs. 5、Reduce downtime via straightforward settings and commissioning assistants.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 98 kg | Product Net Depth / Length | 418 mm |
| Product Net Height | 955 mm | Product Net Width | 380 mm |
| Package Level 1 Depth / Length | 1000 mm | Package Level 1 Height | 500 mm |
| Package Level 1 Width | 400 mm | Package Level 1 Units | 0 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R9 | Input Voltage (Uin) | 380 ⦠480 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 363 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 400 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 430 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 200 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 200 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 200 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00037933-D |
Specifications may be subject to change without notice
