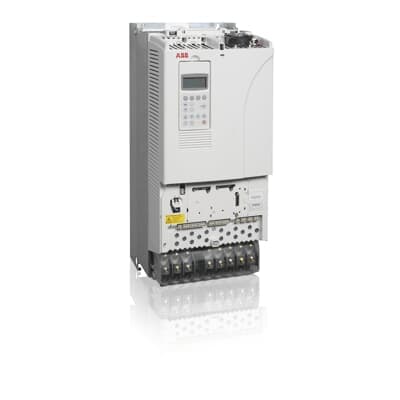

ACS800-04-0005-3
Product ID:71206
Updated: 2026/7/14
Key Features
- 1Optimize cabinet assembly to minimize space usage.
- 2Achieve over 98% efficiency to reduce energy consumption.
- 3Enhance reliability with built-in chokes and braking choppers.
- 4Simplify setup and commissioning to cut installation time.
- 5Deploy for heavy-duty industrial use with IP20 enclosure.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 8 kg | Product Net Depth / Length | 193 mm |
| Product Net Height | 370 mm | Product Net Width | 165 mm |
| Number of Phases | 3 | Frequency (f) | 48 ... 63 Hz |
| Frame Size | R2 | Input Voltage (Uin) | 380 ... 415 V |
| Mounting Type | Module for cabinet assembly | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 5.7 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 7.7 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 8.5 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 2.2 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 3 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 3 kW | Apparent Power Output | 6 kV·A |
| Efficiency Level | IE2 | Standby Loss | 29 W |
| Temperature Rating | Maximum 50 °C | UNSPSC | 39122001 |
| SCIP | e550f262-cea9-43a6-bbb7-76ebc5b9dc70 Finland (FI) | WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 68365325 |
Specifications may be subject to change without notice
