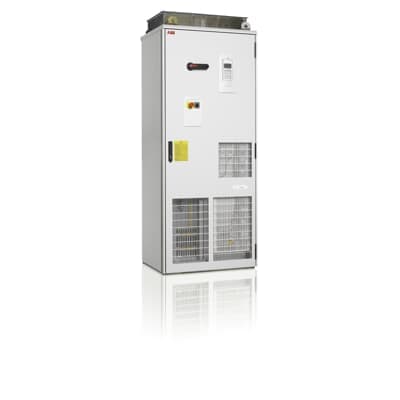

ACS800-07-0610-3
Product ID:70069
Updated: 2026/7/14
Key Features
- 1Integrate all components for a compact, space-saving installation.
- 2Cover a wide power range from 500 kW to 2800 kW.
- 3Achieve SIL2 or PL d safety with Safe Stop 1 and SLS.
- 4Enhance functionality with built-in EMC filters and fieldbus modules.
- 5Utilize regenerative braking and built-in brake choppers.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 890 kg | Product Net Depth / Length | 646 mm |
| Product Net Height | 2130 mm | Product Net Width | 1330 mm |
| Number of Phases | 3 phase | Frequency (f) | 48 ... 63 Hz |
| Frame Size | 1xD4+2xR8i | Input Voltage (Uin) | 380 ⦠415 V |
| Mounting Type | Cabinet built | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 657 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 844 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 879 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 400 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 500 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 500 kW | UNSPSC | 39122001 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) | Product Name | Frequency Converter |
| Manufacturer ID | 68295475 |
Specifications may be subject to change without notice
