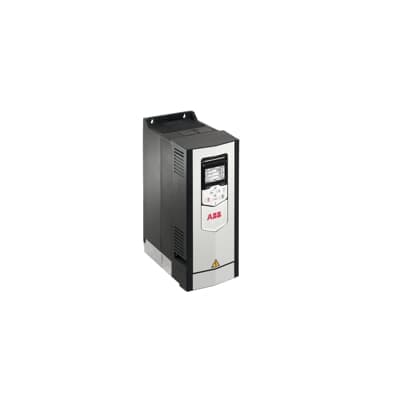

ACS880-01-017A-3
Product ID:92879
Updated: 2026/4/3
Key Features
- 1Deliver 7.5 kW power for heavy-duty industrial applications. 2、Achieve precise motor control with Direct Torque Control (DTC). 3、Ensure durability with IP21 protection and NEMA Type 1 enclosure. 4、Connect seamlessly via CAN, EtherNet/IP, and PROFINET protocols. 5、Serve diverse sectors like oil and gas, mining, and power plants.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 8 kg | Product Net Depth / Length | 249 mm |
| Product Net Height | 409 mm | Product Net Width | 155 mm |
| Package Level 1 Depth / Length | 575 mm | Package Level 1 Height | 300 mm |
| Package Level 1 Width | 250 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R2 | Input Voltage (Uin) | 380 ⦠415 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 12.6 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 16 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 17 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 5.5 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 7.5 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 7.5 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00035965-D |
Specifications may be subject to change without notice
