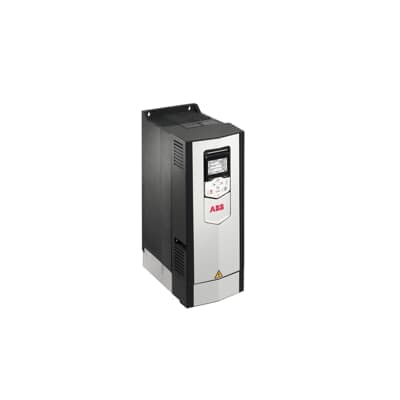

ACS880-01-032A-3
Product ID:92874
Updated: 2026/4/3
Key Features
- 1Install the compact ACS880-01-032A-3 for easy setup. 2、Ensure efficient operation with built-in harmonic filtering. 3、Connect seamlessly via CAN, DeviceNet, EtherNet/IP, and PROFINET. 4、Achieve high efficiency levels up to IE2. 5、Power diverse applications like cranes, conveyors, and mixers.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 10 kg | Product Net Depth / Length | 261 mm |
| Product Net Height | 475 mm | Product Net Width | 172 mm |
| Package Level 1 Depth / Length | 620 mm | Package Level 1 Height | 320 mm |
| Package Level 1 Width | 250 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R3 | Input Voltage (Uin) | 380 ⦠415 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 25 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 30 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 32 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 11 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 15 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 15 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00035967-D |
Specifications may be subject to change without notice
