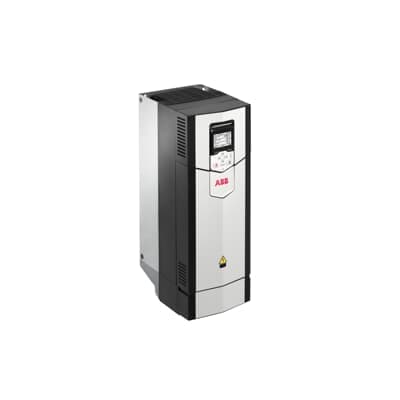

ACS880-01-040A-5
Product ID:92876
Updated: 2026/7/14
Key Features
- 1Achieve optimal performance with advanced vector control technology.
- 2Support sensorless and closed-loop vector control modes.
- 3Install and maintain easily with a compact NEMA 1 enclosure.
- 4Integrate safe torque off (STO) as a standard safety feature.
- 5Connect seamlessly with various fieldbuses and feedback devices.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 18.5 kg | Product Net Depth / Length | 274 mm |
| Product Net Height | 576 mm | Product Net Width | 203 mm |
| Package Level 1 Depth / Length | 685 mm | Package Level 1 Height | 330 mm |
| Package Level 1 Width | 290 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R4 | Input Voltage (Uin) | 380 ⦠500 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 34 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 38 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 40 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 18.5 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 22 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 22 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00037851-D |
Specifications may be subject to change without notice
