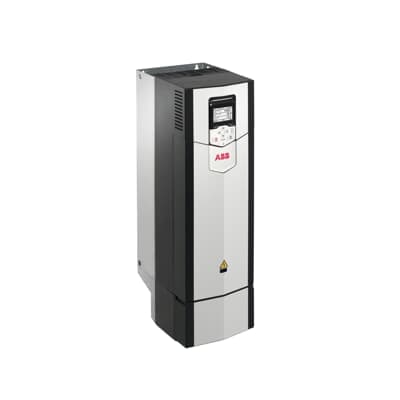

ACS880-01-087A-3
Product ID:70053
Updated: 2026/7/14
Key Features
- 1Control motors efficiently with 45 kW, 87 A, 400V output.
- 2Apply across oil and gas, mining, and manufacturing industries.
- 3Select from VxF, Sensorless Vector, and DTC control modes.
- 4Ensure reliability with IP21 protection and 150% overload capacity.
- 5Connect easily via 2 AI, 6 DI, 2 AO, and RS-485/Modbus RTU.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Product Net Weight | 23 kg | Product Net Depth / Length | 274 mm |
| Product Net Height | 730 mm | Product Net Width | 203 mm |
| Package Level 1 Depth / Length | 830 mm | Package Level 1 Height | 510 mm |
| Package Level 1 Width | 280 mm | Package Level 1 Units | 1 carton |
| Number of Phases | 3 | Degree of Protection | IP21 |
| Enclosure Type NEMA | Type1 | Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R5 | Input Voltage (Uin) | 380 ⦠415 V |
| Mounting Type | Wall-mounted_NO UNIT$ | Output Current, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">IHD</span>) | 72 A |
| Output Current, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">ILD</span>) | 83 A | Output Current, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">In</span>) | 87 A |
| Output Power, Heavy-Duty Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PHD</span>) | 37 kW | Output Power, Light-Overload Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">PLD</span>) | 45 kW |
| Output Power, Normal Use (<span style="font-size:11.0pt;font-family:'Calibri',sans-serif;">Pn</span>) | 45 kW | Efficiency Level | IE2 |
| UNSPSC | 39122001 | WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Product Name | Frequency Converter | Manufacturer ID | 3ABD00035949-D |
Specifications may be subject to change without notice
